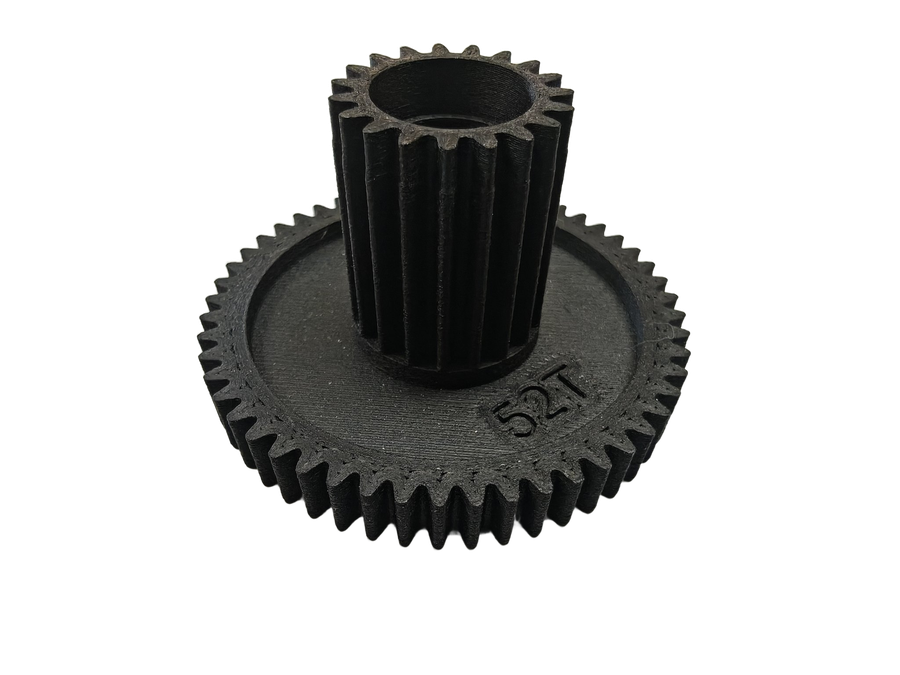

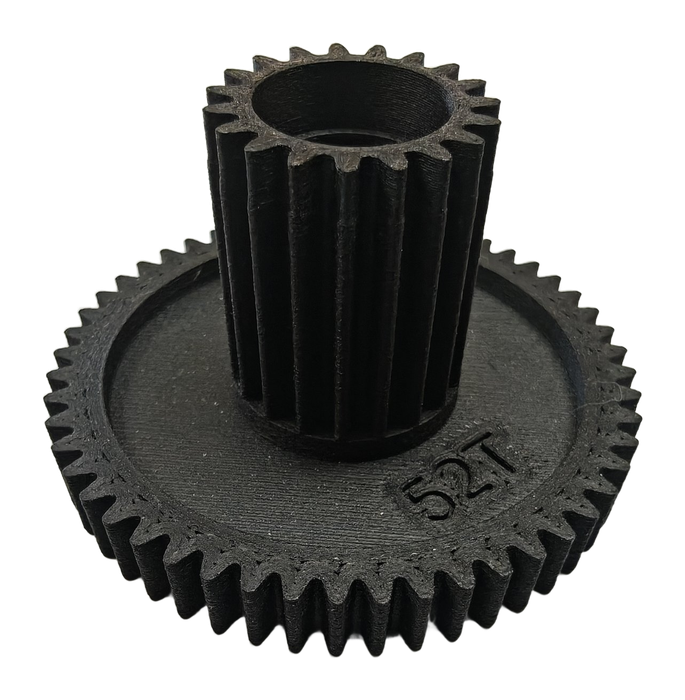

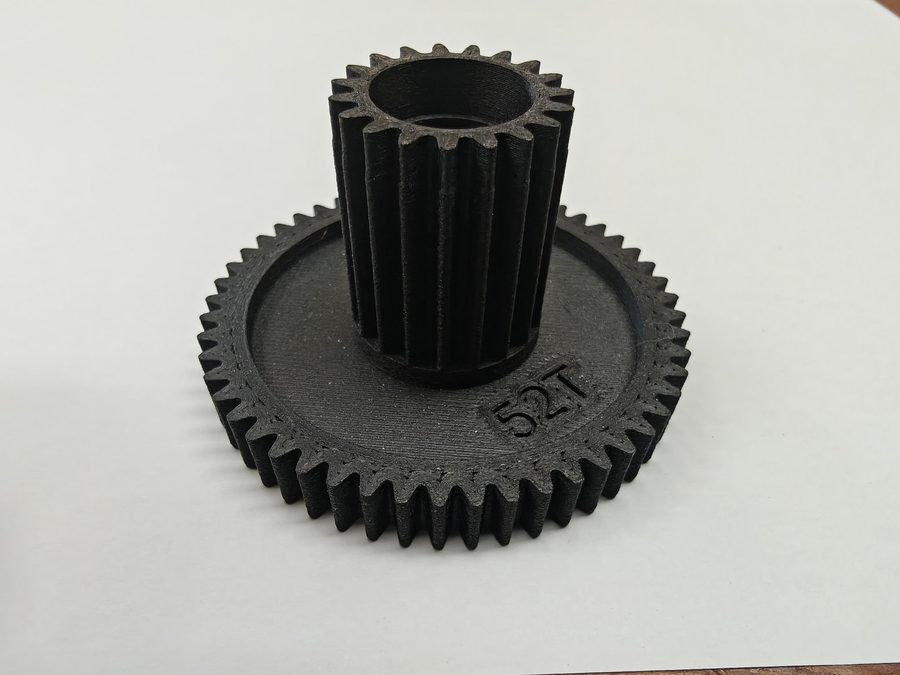

A compound drive gear, reverse-engineered tooth-for-tooth.
A compound drive gear reverse-engineered tooth-for-tooth from a worn original, pinion and main gear printed as one piece in carbon-filled ASA for stiff, low-wear meshing.
The job
A compound drive gear had worn past use, and no replacement was available on its own. We reverse-engineered it tooth-for-tooth from the worn original, printing the pinion and main gear as one piece in carbon-filled ASA for stiff, low-wear meshing under load.
