Reverse-engineered retaining collars for a woodchipper solenoid

A set of 3 threaded retaining collars reverse-engineered and printed in PC to hold a woodchipper's hydraulic valve solenoid assembly in place under vibration.

Part
Retaining Collar
Material
PC (polycarbonate)
Thread
M24 x 1.5
Weight
22.5 g
Print time
1.15 h
Fit
Checked before handoff
Sheet
Case 01 of the file
Retaining Collar for Woodchipper Solenoid Assembly, M24 x 1.5, project view 2 BEFORE
Retaining Collar for Woodchipper Solenoid Assembly, M24 x 1.5, project view 1 AFTER
M24 X 1.5 THREAD

Notes

  1. 1

    The solenoid assembly on this woodchipper rides on a mounting tube, held in place by a threaded retaining collar. Vibration during operation or transport can back the collar off, letting the assembly come loose. We sat down on site to go over the failure and work out a fix.

  2. 2

    We reverse-engineered the collar from the original, sizing the thread to M24 x 1.5 and checking it against the mounting tube for fit. No drawings, no part number to order against, just the geometry in front of us.

  3. 3

    PC was the call here. The collar sees vibration and repeated hand-tightening in a dirty outdoor environment, and it needed to hold a thread under load without cracking or stripping.

  4. 4

    We trial-fit samples on site before finalizing, then delivered a set of three. Each one printed in 1.15 hours and came in at 22.5 g.

Retaining Collar for Woodchipper Solenoid Assembly, M24 x 1.5, project view 1
← All workCase 01 / 09

Case study  ·  Industrial

Reverse-engineered retaining collars for a woodchipper solenoid

A set of 3 threaded retaining collars reverse-engineered and printed in PC to hold a woodchipper's hydraulic valve solenoid assembly in place under vibration.

Drag to compare

Retaining Collar for Woodchipper Solenoid Assembly, M24 x 1.5, project view 1
Retaining Collar for Woodchipper Solenoid Assembly, M24 x 1.5, project view 2
BEFOREAFTER
1

The solenoid assembly on this woodchipper rides on a mounting tube, held in place by a threaded retaining collar. Vibration during operation or transport can back the collar off, letting the assembly come loose. We sat down on site to go over the failure and work out a fix.

2

We reverse-engineered the collar from the original, sizing the thread to M24 x 1.5 and checking it against the mounting tube for fit. No drawings, no part number to order against, just the geometry in front of us.

3

PC was the call here. The collar sees vibration and repeated hand-tightening in a dirty outdoor environment, and it needed to hold a thread under load without cracking or stripping.

4

We trial-fit samples on site before finalizing, then delivered a set of three. Each one printed in 1.15 hours and came in at 22.5 g.

Part Facts
Retaining Collar
Material
PC (polycarbonate)
Thread
M24 x 1.5
Weight
22.5 g
Print time
1.15 h
Fit
Checked before handoff

ViewsFrom photo to part

Retaining Collar for Woodchipper Solenoid Assembly, M24 x 1.5, project view 3
VIEW A · A PHOTO OF THE…

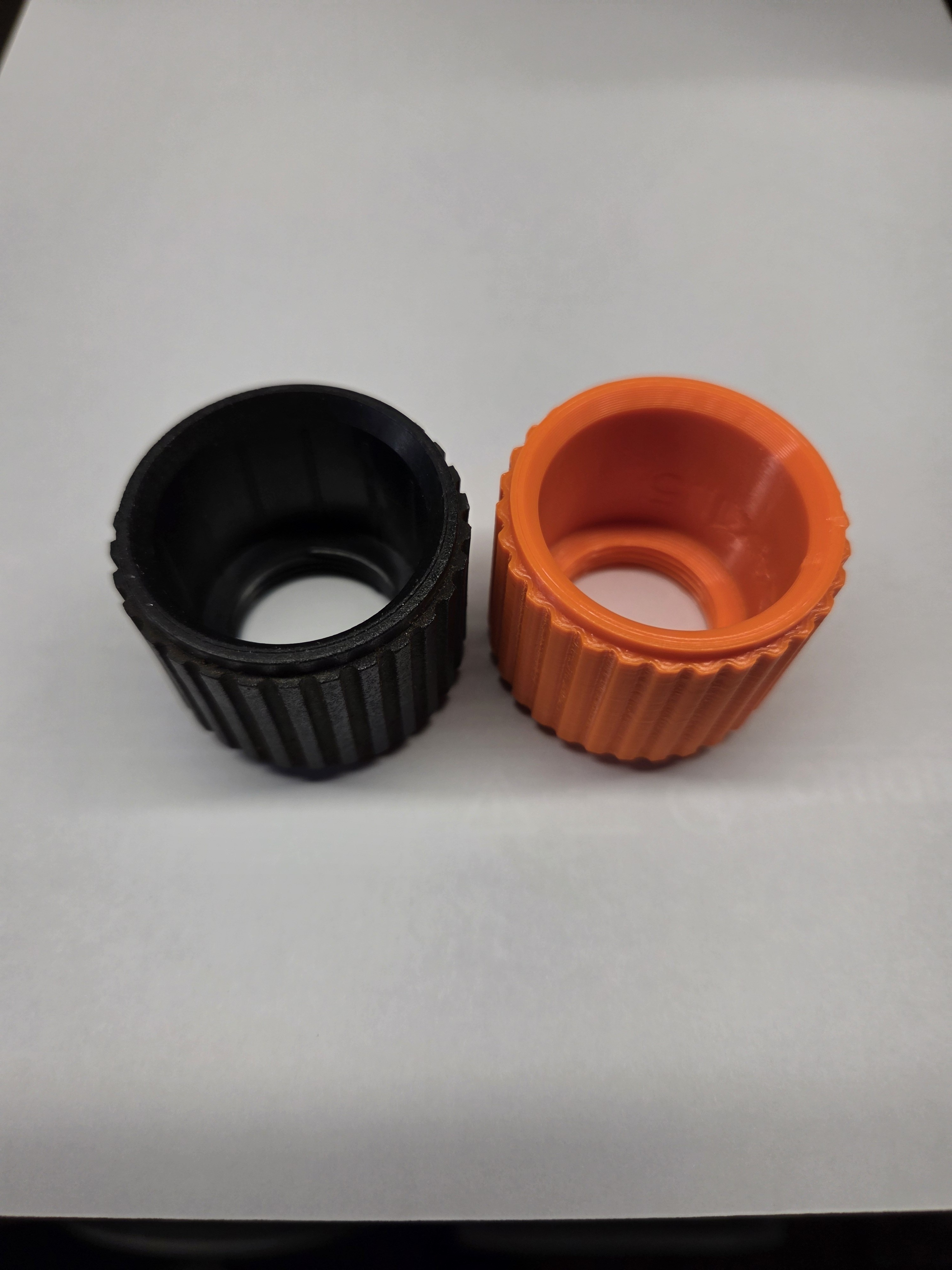

Retaining Collar for Woodchipper Solenoid Assembly, M24 x 1.5, project view 4
VIEW B · THE ORIGINAL COLLAR…
Retaining Collar for Woodchipper Solenoid Assembly, M24 x 1.5, project view 5
VIEW C · CAD
